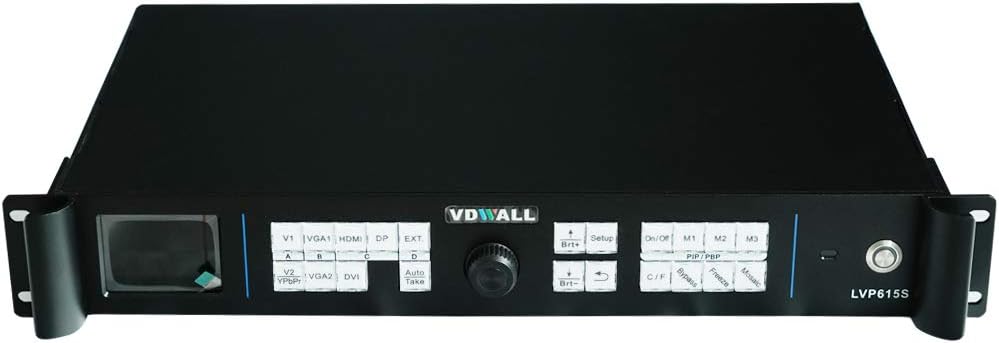

LVP615S LED Video Processor with SDI Port

VDWall LVP615S KEY FEATURES: 1.One button switching and Pre.+ Take switching 2.Cut, Fade-in/Fade-out and Blend switching 3.AIAO, any input crop and any output 4.User-defined EDID of the DVI input for a pixel to pixel display 5.User-defined output resolution. Upto 3840 pixels width or 1920 lines height. 6.3 prset modes of PIP/POP, one button to call a mode, the two pictures can be set in any size an at any position. 7.Multiple cascading by DVI-LOOP to display a huge video wall picture, as well as a small PIP picture can be opened in each unit display. 8.USB plug and play, video, picture and PPT playing. Wireless projection from mobile phone and Ipad’s screen onto LED screen. 9.WI-FI, Infrared remote control, USB, RS232 and TCP/IP etc, convenient control and operate. Relevant configuration software and instructions are available！

• Up to 3840 pixels or 1920 pixels @Frame Rate 60Hz, enable to set a higher output by reducing the frame rate below 60Hz. The maximum output is 2.65 million Pixels at the format of 2304x1152@60Hz
• Enable EDID of DVI input ports,user define the PC’s output resolution. DVI input, DVI output and the LED screen keep the same resolution to realized a Pixel to Pixel display.
• The color of each Input can be adjusted individually, color=0 means a gray display
• Infrared Remote control and Operate the unit, support the operation and adjustment by mobile phone and Ipad etc.
• Multiples cascade& synchronized output for video wall applications.
