6 Gauge20feet Silicone Wire Ultra Flexible 6 Gauge Stranded Tinned Copper Wire, 6 AWG Automotive RC Battery Wire 600V 392℉ (Black 10ft + Red 10ft Separated)
Product details
| Management number | 208223726 | Release Date | 2026/03/22 | List Price | $13.55 | Model Number | 208223726 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

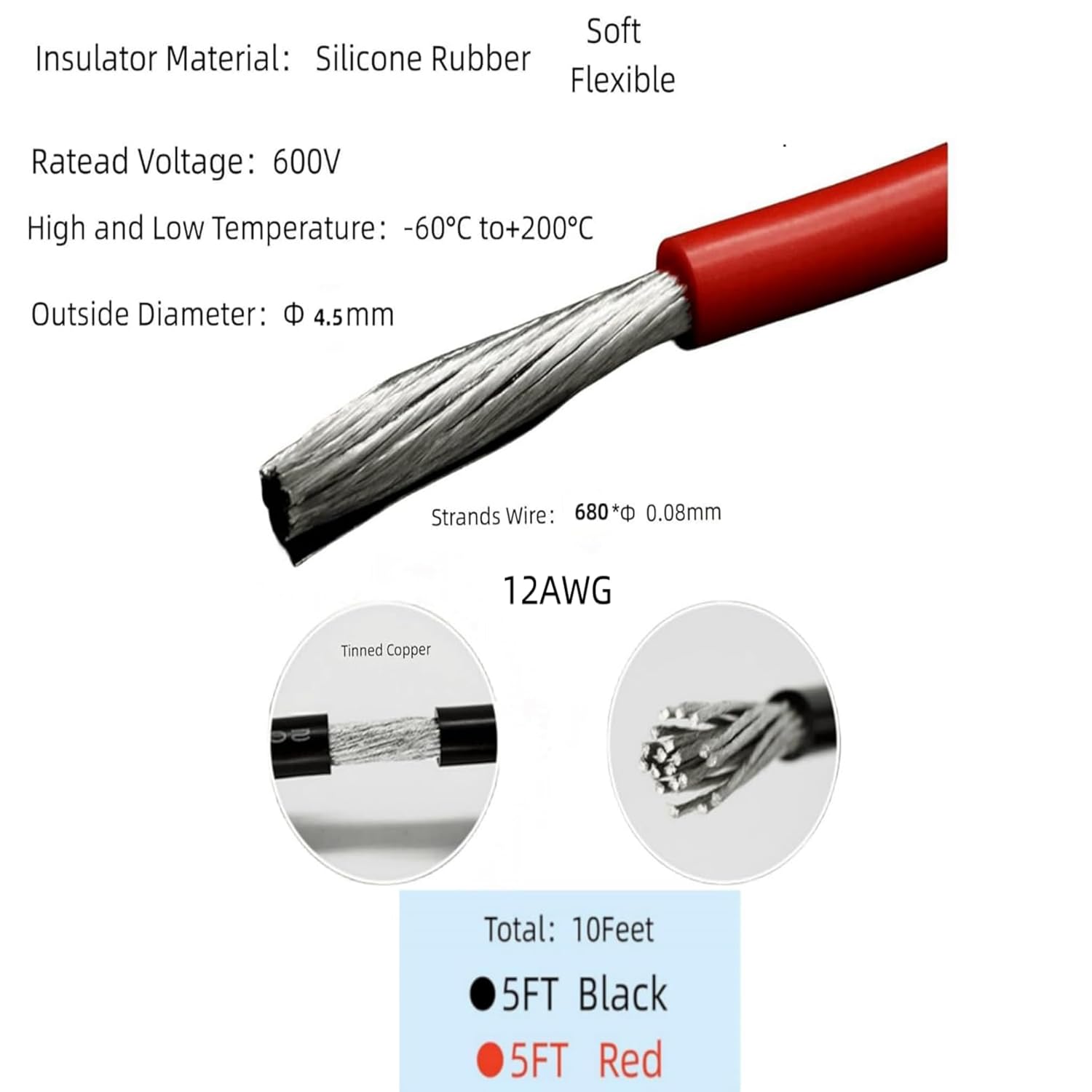

Kenhihi Silicone Wire Due to the Silicone insulation and fine stranded core, The wire is very flexible easy to strip and solders . Well suited for applications where the wire will be flexed, like test cables. Could be terminated with pins and heat shrink sleeves for breadboard jumper wires. super flexible 11-1650 strands of 0.08 mm Tinned copper wire - protecting them from corrosion and making it easier to solder.Highly efficient - Super low impedance . 8AWG：Outside Diameter: 6.5mm Wire Core Diameter:1650/ 0.08mm,withstand current 60A 10AWG：Outside Diameter: 5.4mm Wire Core Diameter:1050/ 0.08mm,withstand current 43A 12AWG: Outside Diameter: 4.5mm Wire Core Diameter: 680/0.08mm,withstand current 30A 14AWG: Outside Diameter: 3.5mm Wire Core Diameter: 400/0.08mm,withstand current 20A 16AWG：Outside Diameter: 3.0mm Wire Core Diameter: 252/0.08mm,withstand current 12A 18AWG：Outside Diameter: 2.3mm Wire Core Diameter: 150/0.08mm,withstand current 7.5A 20AWG: Outside Diameter: 1.8mm Wire Core Diameter: 100/0.08mm,withstand current 5A 22AWG: Outside Diameter: 1.7mm Wire Core Diameter: 60/0.08mm,withstand current 3A
- 6 Gauge Silicone Wire 20ft --- Red & Black each 10ft Separated.
- Super Flexible: Combine with high count copper conductor & soft silicone insulator, our 6 gauge automotive wire is super flexible. It can help you handling you projects easily, especially for narrow places.
- Conductor: Our 6 AWG wire with 3200 strands 0.08mm tinned copper wire (16.085mm²). The tin layer can protect inner oxygen-free copper from been oxidized. (Note: this is not aluminum wiring, Use fire test conductor, you will see copper inside.)
- Insulator: The 6 gauge wire with silicone rubber insulation which is soft and resistance to low & high temperature. Rated Temperature: -60℃ to 200℃ also -76℉ to 392℉. Overall Diameter: 8.3mm
- You can use our 6 gauge stranded copper wire for all under 600V devices, The rated current is 120A. Please make sure your wire with right gauge for you devices.
| Manufacturer | Kenhihi |
|---|---|
| Package Dimensions | 9 x 7.2 x 1 inches; 2.5 Pounds |
